Spur gear motors

Powerful and space-saving

DC motors with spur gears are suitable for all drives with parallel outputs as well as for higher torques and lower rotation speeds.

I need advice

Spur Gear Motors

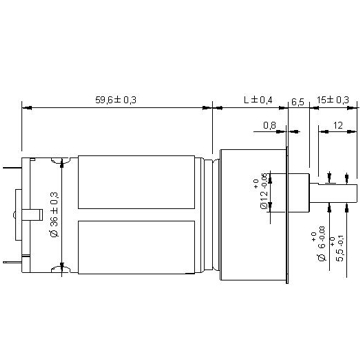

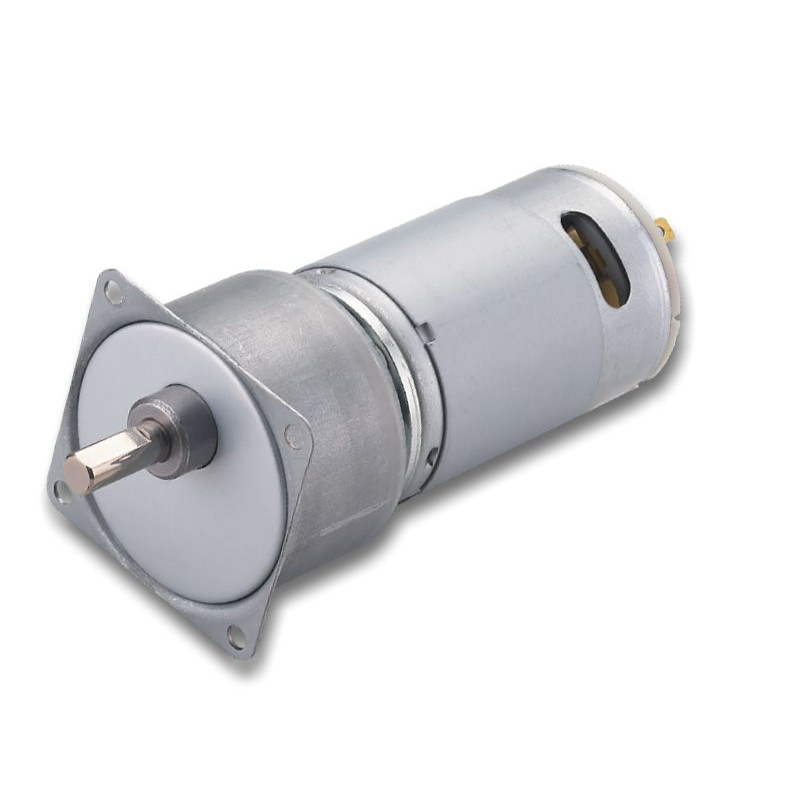

Series S036060 motor-type S036060.0150.00

Spur Gear Motors Series S036060 motor-type S036060.0150.00 DC
Motor type S036060.0150.00
Type DC
Rated voltage (VDC) 24
No load speed (Upm) 37
Rated speed (Upm) 31
Rated Torque (Nm) 0.68
Gearbox transmission 150:1
Gearbox length (mm) 28.9
Direction L/R
Shaft 1 W560
Circuit diagram S560
Connection K560
S036060.0150.00 W560 S560 K560

Technical description

Crankcase: metal
Magnet field: permanent magnet
Mounting armature: ball or plain bearing
Gear type: spur gear
Gear box: metal
Gear wheel: brass or steal
Lubrication: grease, permanent lubrication
Interface mechanical: output shaft
Interface electrical: cable tin-plated, cable with connector or solder lugs

Notices

Modification of the output shaft with feather or woodruff key, plains or additional internal threat.

Mounting on demand of hall-IC, encoder, tacho sensor or brakes.

If required, we mount and deliver motors with any add-on parts, e.g. rubber-metal buffer, clutch or any brackets.


The right spur gear motor in just three steps

Step 1

You need the right spur gear motor for your application. Your must-have criteria: Low torques and cost-effective.

Step 2We suggest the optimum geared motor based on your specification. In addition to detailed diagrams and characteristic curves, we also supply load case results from the motor test bench.

We will show you the optimum spur gear motor for your specification. You will receive all motor dimensions and detailed performance data. If necessary, we can also test it on our drive test bench.

Step 3

Depending on the order size, we will give you our best price for this spur gear motor.

Spur gear motor - Fields of application

Automation in industry, office, laboratory and household

Swivel mechanisms; clockworks; tracking systems; positioning systems such as camera movements; office systems such as printers, document shredders, shredders but also computer technology; toys; ticket machines; contact closers; laboratory systems; kitchen appliances; dosing systems etc.

Recognized advantages of the spur gear motor

  • Simple assembly
  • Cost-effective
  • Versatile in use
  • Easy to combine
  • Different cases
  • Central or decentralized gear shaft output

Spur gear motor - in various series

Here you will find the desired spur gear motor in the many other series to help you make the right choice. The grouping into series indicates the respective case and identical gearbox parts. The other equipment can be optionally configured to suit the specific application


Spur gear motor | Used in many industries

  • Robotics
  • production engineering
  • Medical Technology
  • Laboratory technology
  • Automated technology
  • Security industry
  • Consumer electronics
  • Office technology
  • Solar systems
  • Building services engineering
  • Air conditioning
  • Household technology

Always with all associated installation and connection details

For each spur gear motor, we provide you with the corresponding schematic drawings as well as information on the circuit and connection. We will also show you the various drive shafts that can be used.

Motor characteristic curve

We also provide you with the characteristic curve for each motor, as we test it as standard under load on our own drive test bench. If you want to know specific load values for your application, we will be happy to adjust them on request.


We do a lot to remain a strong partner in Drive Systems

Spur gear motor | Your questions & answers

Yes, the rotation speed of spur gear motors can be controlled with a PWM signal.

Yes, a spur gear motor can reach +60 degrees Celsius during operation, depending on the model.

Yes, if the supply voltage is throttled, the rotation speed drops.

Please send us an e-mail to info@elektromotore.eu with your contact details and the engine for which you require the CAD model.
