Motor control 06.04.021

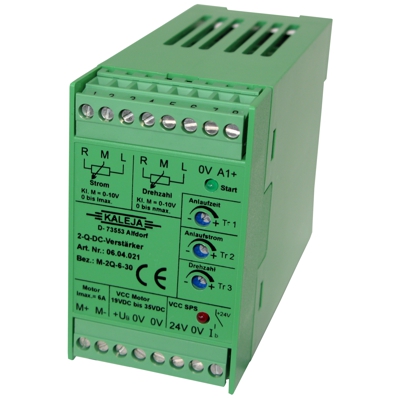

Control unit 06.04.021
Item number 06.04.021
Item name M-2Q-6-30
Motortype DC
Digital output 1
Bus nein
Rotating direction Eine Drehrichtung
Speed control
Current monitoring
Current controller IXR
Dynamic breaking
Max. power 6.5
Steady load current 6
Supply voltage of control circuit 24 (19-35) VDC
Supply voltage load circuit 24 VDC
Voltage 24
Control unit 06.04.021

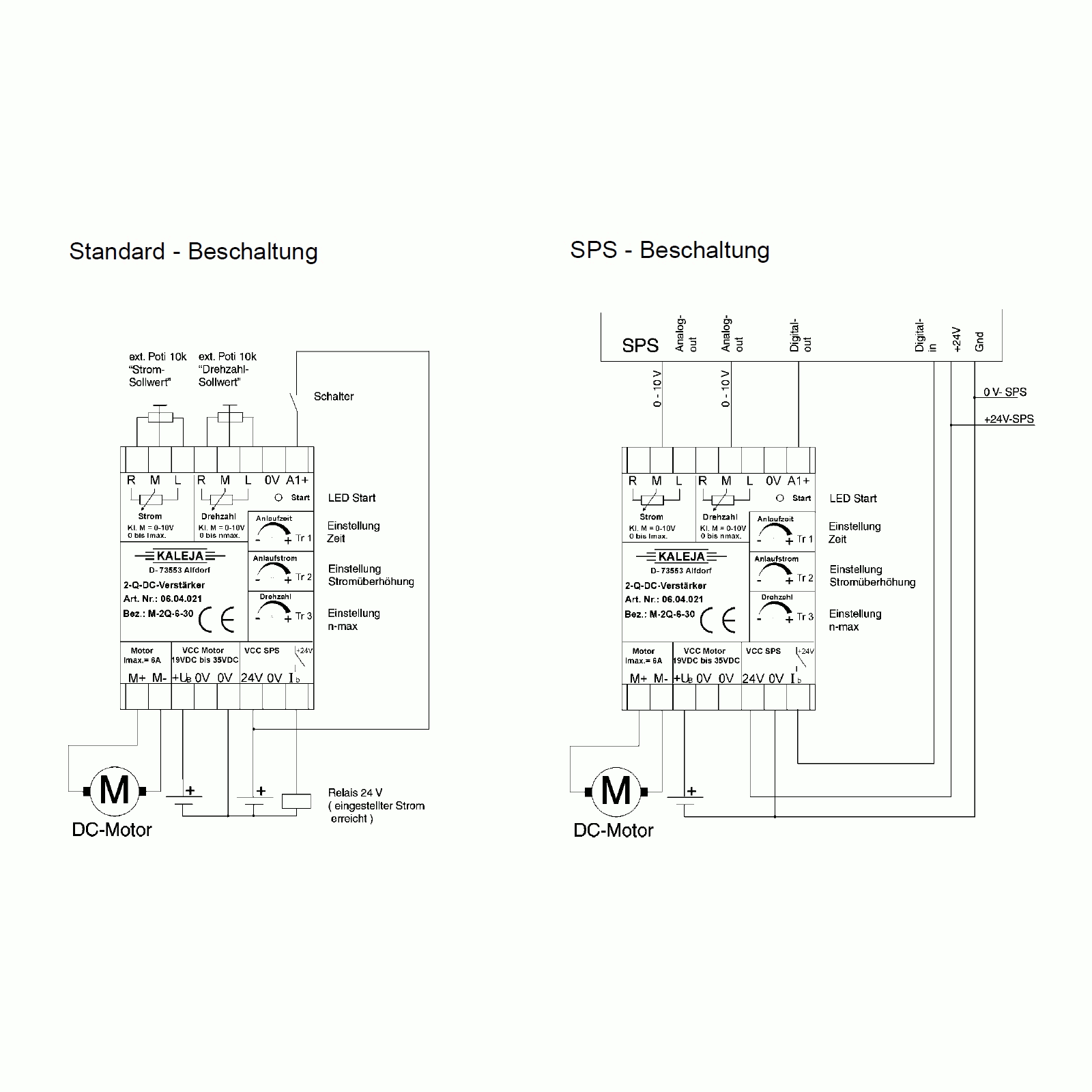

Technical description

The M-2Q-6-xx module is a two-quadrant motor control unit for DC motors. It ensures the safe switching on/off as well as the controlled driving and braking of motors, solenoid valves and other loads. In the off state, the load is short-circuited, resulting in dynamic braking. Special features: Short-circuit protection, temperature protection, analog inputs 0 to 10 V for motor current and motor speed, signal output torque limitation (current limitation), adjustable inrush current boost, adjustable inrush current boost time, adjustable max. speed, 20 kHz pulse-width modulated MOS-FET output stage with high efficiency.

Notices

Application:
- Motor control for brushed motors
- El. load relay for solenoid valves and various loads

Properties:
- Current control
- Speed control
- Controlled driving and braking of motors
- Adjustable inrush current boost
- Start/stop function
- Dyn. braking

The various details in the product filter for the motor controls already show the variety of functions. The main criteria that are decisive for your application can be used to quickly narrow down the selection of usable control modules. The right control unit is therefore quickly found.
