Programmable, compact and robust
In standard or customized versions, our electronic control units for DC motors and BLDC motors meet a wide range of requirements. Each controller has a compact, robust design and can be connected via standard plug contacts. Rotation direction, rotation speed, ramps, dynamic braking, current supply, etc. can be controlled via programmable digital and analog inputs and outputs.

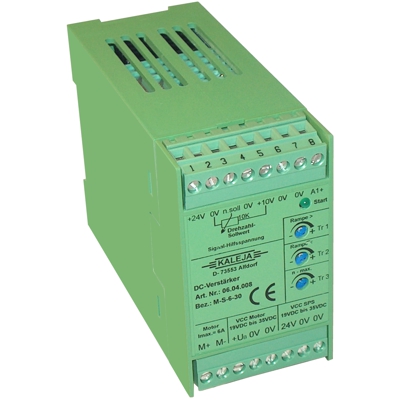

Motor control 06.04.008
| Item number | 06.04.008 |
|---|---|
| Item name | M-S-6-30 |
| Motortype | DC |
| Analog input | 1 |
| Bus | nein |
| Manual controls | |
| Rotating direction | Eine Drehrichtung |
| Speed control | |
| Start ramp | |
| End ramp | |
| Dynamic breaking | |
| Max. power | 6 |
| Steady load current | 6 |
| Supply voltage of control circuit | 24 (19-35) VDC |
| Supply voltage load circuit | 24 (18-35) VDC |
| Voltage | 24 |
Technical description
Module 06.04.008 / M-S-6-30 is an overrun type, module 06.38.007 can be used as a possible replacement!

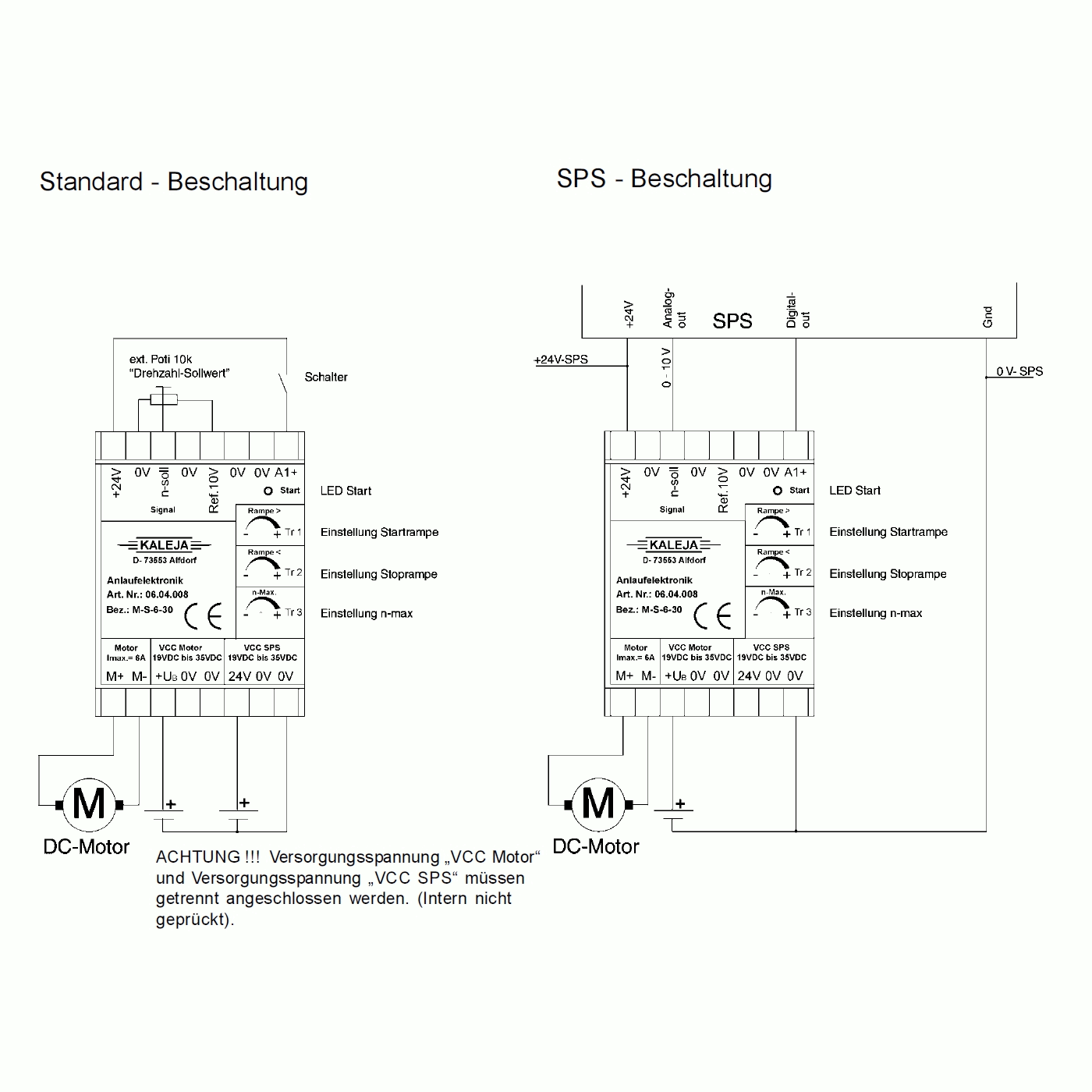

The M-S-6-xx module is a two-quadrant motor control unit with soft start/soft braking for DC motors. It ensures the safe switching on/off as well as the controlled and defined driving or braking of motors. In the off-state, the load is short-circuited after the soft braking has expired. Special features: Short-circuit protection, temperature protection, analog input 0 to 10 V for motor speed, adjustable max. speed, 20 kHz pulse-width modulated MOS-FET output stage with high efficiency.
Notices
Application:
- Motor control for brushed motors
- El. load relay for solenoid valves and various loads
- Particularly suitable for soft starting and soft braking
Features
- Speed control
- Controlled driving and braking of motors
- Separately adjustable start ramp and braking
- Start/stop function
Discontinued model !
